General Information
Hardware supplied
- 2 x 100mm long 6mm Bolts
- 2 x prefixed black Button Keyhole fixings (on rear of the backing plate)
- 2 x Prefixed Green buttons (on rear of 1 handle face)
- 1 x Allen key
Supplied configuration
- The exterior face is supplied with the backing plate that is pre-fixed and fitted with 2 metal threaded inserts.
- The interior face is fitted with 2x green buttons at the rear.
- The interior backing plate (loose part) and fitted with 2 black keyhole fixings.

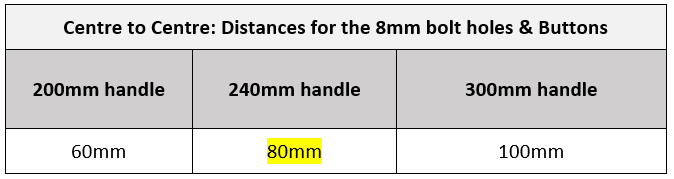

- The size of the handle will determine where the button fixings will be located. See table.
Safety
- Always follow the manufacturer’s safety instructions when using power tools and adhesives.
- Wear safety glasses throughout the installation.
Tools and equipment required
- Safety glasses
- Drill and 8mm drill bit
- Handle set and fittings
- Pencil
- Measuring tape
- Allen key
Prepare the door

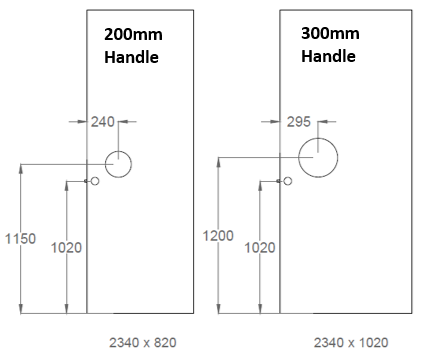

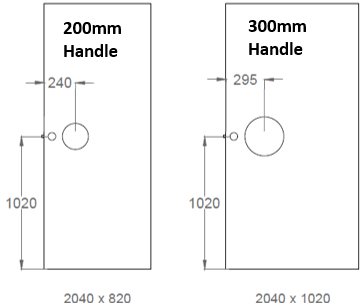

- It is recommended to position the handle (as per the example diagrams below) from the base of the door and the inset according to the handle size (this is optional)
- Mark the height and distance from the edge of the door.
- Mark the location for the 2 bolt holes. See relevant distances below. Important that you check for accuracy.
- Drill 8mm holes through door at the points marked out above from either side to avoid break out.
Installation
IMPORTANT NOTE
- The pre-fixed handle and backing plate must be fitted to the exterior face of the door.
- Ensure the handle is pre-finished on all faces prior to installation.
STEP 1
- Remove the backing plate with the yellow sticker ‘loose part’
STEP 2
- Insert the long bolts through the rear of the loose backing plate.
- Note: Black keyhole fittings should face outwards and above centre as shown below.
STEP 2
- Next, pass the bolts through the door hole
STEP 3
- Connect the bolts to the threaded inserts of the prefixed face/backing plate on the exterior side of the door. Tighten firmly using the Allen key.
STEP 4

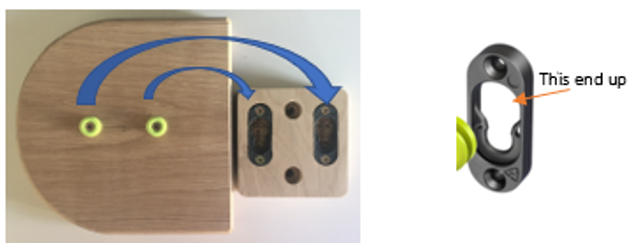

- Install the remaining face. Align the wide opening of the black fittings with the green buttons.
STEP 5
- At the top of the face firmly push down to click it into place.
If a mallet is needed, ensure to protect the surface of the handle prior to tapping to avoid risk of damage.
NB: Exterior handles require a quality exterior finish on all surfaces including the entire rear surface to protect from water damage.
